Setting up the Stand Alone App

1. In the MIE Solutions Shared Drive Copy a shortcut to the computers desktop for the

MIE.Dashboard.exe

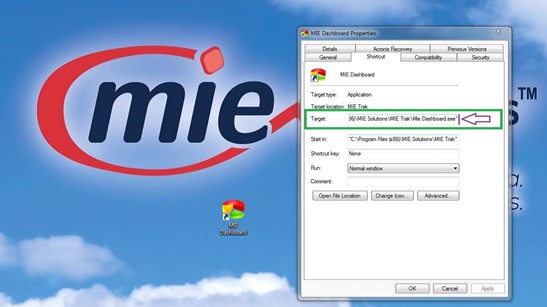

2. Once the app is on the desktop, Right Click it and open the properties.

3. In the Target Field Show below add the following

“ Mie.Dashboard.exe /id:2 /interval:1000 /refreshbutton:1” (Note there is a space before the Mie.Dashboard)

4. The ID Number Represents the Dashboard ID that will be displayed. Change this as needed. The

Dashboard ID is noted in the Dashboard Maintenance Module. If using groups use /gid:, the Group PK can be queried in quickview.

5. The Interval Represents the Number of Seconds between refreshing the data on the screen. Do

not use less than 3 Minutes.

6. Select Apply and ok on the parameters and open MIE Dashboard

All parameters

 One Required

/Id: enter the DashboardPK, for single dashboard

/gid: enter the DashboardGroupPK, for multiple dashboards

 Optional

/interval:  Enter time in seconds >180

/refreshbutton: 1

 Identified not used at this point

/expression:

/count:

/application:

/Arg:

/Match:
